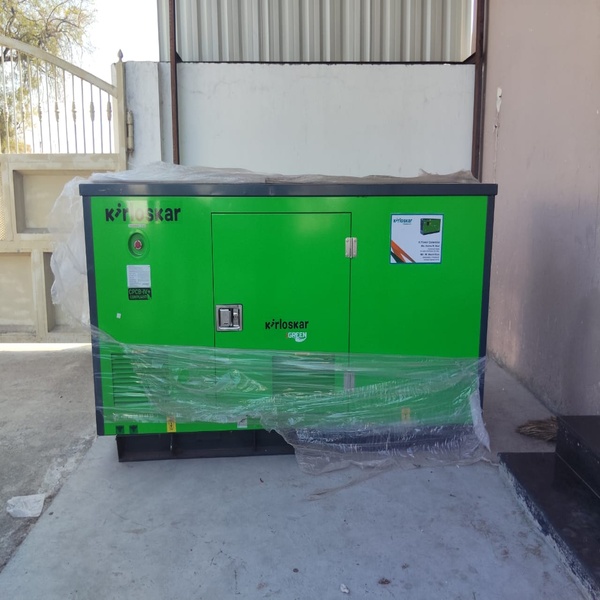

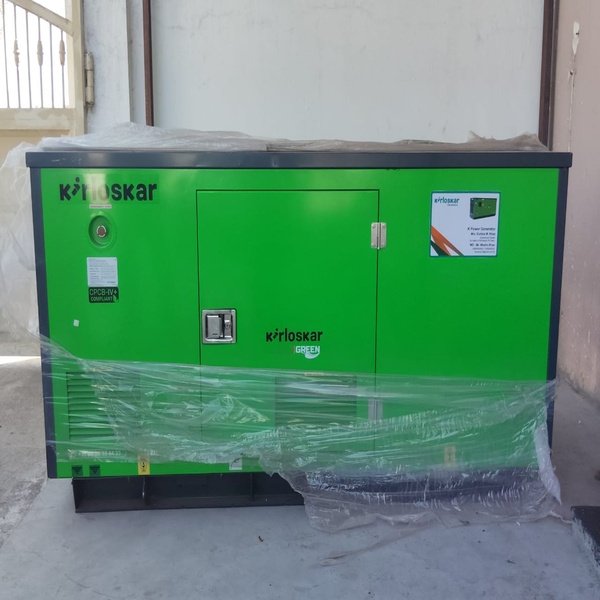

Kirloskar 58.5kva Genset

Name: Kirloskar 58.5kva Genset
Brand: K POWER GENERATOR
Price: 648026.0 INR
Availability: InStock

Price 648026.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kirloskar 58.5kva Genset Specification

Insulation
Class H

Engine Type
4 Stroke, Water Cooled, Turbocharged Diesel

Protection Class
IP23

Pressure
14.5 PSI (approximate)

Engine Model
Kirloskar 4R1040TA

Fuel Consumption
11.2 Litres/hr at 100% Load

Bore *Stroke
104 mm x 113 mm

Alternator
Brushless, Synchronous

Poles Number
4

Fuel Tank Capacity
90 Litres

Dimension (L*W*H)
2200 x 1000 x 1400 mm

Product Type
Diesel Generator

Output Type
AC Three Phase

Rated Power
58.5 kVA

Rated Voltage
415V

Starting Type
Electric Start

Rated Frequency
50 Hz

Power Range
58.5 kVA

Noise Level
75 dB(A) at 1 meter distance under normal conditions

Phase
Three Phase

Color
Green

Weight
1200 kg (approximate)

Emissions
Complies with CPCB-II norms

Control Panel
AMF (Auto Mains Failure) Panel

Display
Digital Metering Display (V, A, Hz, kVA etc.)

Canopy Type
Acoustic and Weatherproof

Fuel Type
Diesel

Battery Included
Yes, Heavy Duty Maintenance Free Battery

Ambient Temperature Range
Up to 50C

Regulation
1% Voltage Regulation

Governor Type
Mechanical

Cooling System
Water Cooled

Altitude
Up to 1000 meters above sea level without derating

Alternator Make
Kirloskar Green

Lubrication System
Full Forced Lubrication

About Kirloskar 58.5kva Genset

Power	58.5 KVA
Phase	3-Phase
Engine Make	Kirloskar
Model Number	KG1- 62.5AS
Genset Brand	KOEL by Kirloskar
Power (kVA)	62.5 kVA
Warranty	24 month from date of commissioning or 5000 hrs
Frequency	50 Hz
Dry Weight (Kg)	1420
On-site Service	Available
AMC	Available
Fuel Tank Capacity	150 ltr
Fuel Consumption (at 100% Load)	14.1 ltr/hr
Availability	In Stock

A Kirloskar 58.5 kVA CPCB IV generator has a Prime Rating of 46.8 kW (or 50 kW) and is a three-phase power unit designed to meet stringent emission norms set by the Central Pollution Control Board. Key specifications include a rated speed of 1500 RPM, a liquid cooling system, and dimensions of approximately 2900 x 1100 x 1580 mm. This robust and efficient generator offers a durable, low-noise power solution for industrial and commercial applications, ensuring stable operation.

Advanced Cooling and Durability

Equipped with a water-cooled engine, the generator maintains optimal temperature even at high loads or ambient temperatures up to 50C. The acoustic and weatherproof canopy shields sensitive components, ensuring longevity in varied environments. With Class H insulation and IP23 protection, the alternator is safeguarded against dust and moisture, guaranteeing reliable performance over extended periods.

Smart Control and Ease of Operation

This genset features an AMF (Auto Mains Failure) panel for seamless transition during power outages, eliminating the need for manual intervention. The digital metering display provides comprehensive, real-time monitoring of critical parameters, enabling informed maintenance planning. Coupled with electric start and a maintenance-free battery, operations start swiftly even in urgent situations.

Efficiency and Environmental Responsibility

Operating at an efficient fuel consumption rate of 11.2 litres per hour at full load, the Kirloskar 58.5kVA Genset ensures optimal energy usage. Its compliance with CPCB-II emission standards demonstrates a commitment to reduced environmental impact. The brushless, synchronous alternator and forced lubrication system enhance overall efficiency, making it a dependable choice for sustainable power supply.

FAQ's of Kirloskar 58.5kva Genset:

Q: How does the AMF (Auto Mains Failure) panel enhance genset operation?

A: The AMF panel detects power outages and automatically starts the generator, switching the load from the main supply to the genset without manual intervention. Once mains power is restored, it safely switches back, ensuring continual and seamless power supply.

Q: What benefits does the acoustic and weatherproof canopy provide?

A: The acoustic and weatherproof canopy significantly reduces operational noise to about 75 dB(A) at 1 meter and protects the genset from environmental elements, thus prolonging its lifespan and maintaining reliable performance in various climates.

Q: When should maintenance be performed on the Kirloskar 58.5kVA genset?

A: Regular maintenance intervals depend on usage, but typically, checks are advised every 250 hours or as recommended in the user manual. The digital metering display assists by tracking running hours and vital parameters for timely service.

Q: Where can this generator be effectively installed and used?

A: This generator is designed for installation in commercial, industrial, and institutional environments. Its robust construction and weatherproof features allow both indoor and outdoor placement, provided there is adequate ventilation and adherence to safety standards.

Q: What is the process for starting and operating this genset?

A: The electric start function simplifies operation; turning the ignition activates the battery, and the generator powers up automatically. The AMF panel manages transitions during power failures, while the digital display allows for easy monitoring during operation.

Q: How does the fuel system support continuous operation?

A: With a 90-litre tank and a fuel consumption of 11.2 litres per hour at full load, the generator can run continuously for approximately eight hours. The full forced lubrication system ensures engine reliability throughout extended usage cycles.

Q: What are the key advantages of the Kirloskar 58.5kVA genset for users?

A: Users benefit from high efficiency, convenient automatic control, low maintenance due to the maintenance-free battery, reliable voltage regulation, and compliance with CPCB-II emission norms. These factors make it a sound investment for dependable, long-term backup power.
